| 부호를 확인하십시오: | JW-B12 | 범위를 재기: | 10-3000g |
|---|---|---|---|
| 최고 속도: | 60P/M | 힘: | 4.4kw |
| 전압: | 220V | 패키징 유형: | 부대 |
Horizontal Packaging Machinery For Granule

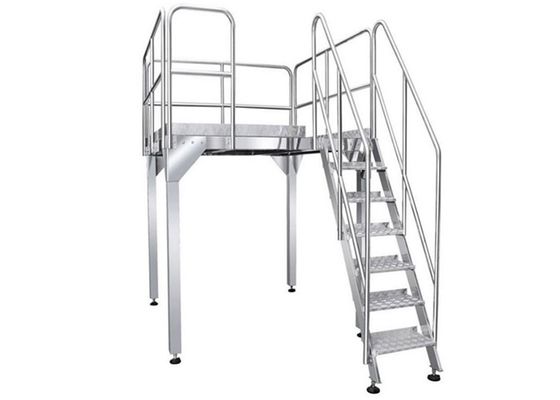

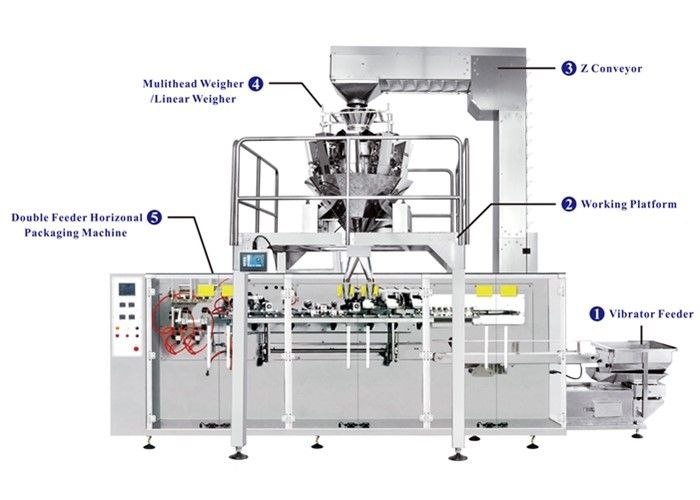

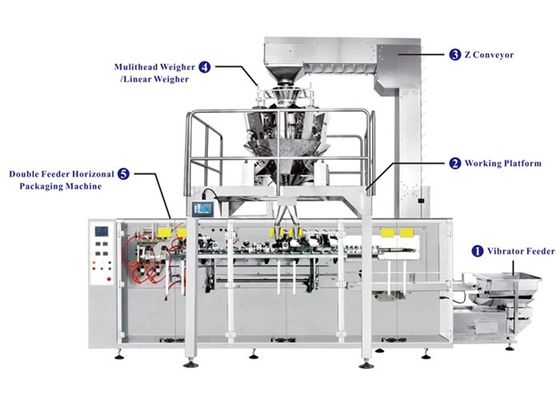

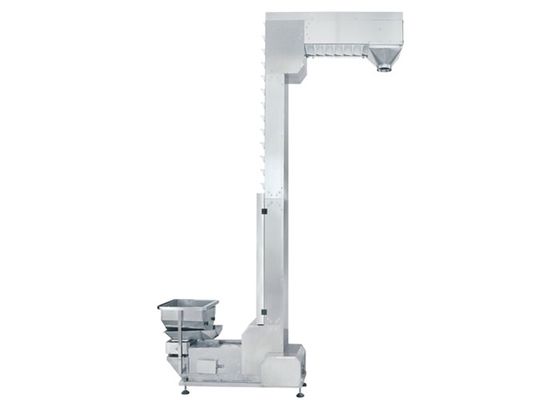

Horizontal Packaging Machinery offers high speed and flexibility to the packaging line. Multiple belt conveyor system with automatic control of the speed of each belt enhances the capacity and efficiency. The speed of ILF is synchronized to the flow wrapper by the belt-driven by the servo motor. The system is used for high-speed in-line feeding of regular shaped product such as cookies, chocolate. etc. The Double Inlet Horizontal Packaging And Weighing System are including multihead weigher/linear weigher, Z conveyor, Working platform, Vibrator feeder, Double Feeder horizontal packaging machine.
Features
| 1.High precision and high efficiency. |
| 2.Applicable to lots of materials.firmed and perfect sealing. |
|
3.Used in prefabricated bags, beautifully packaged. |
| 4..Fully automatic finishing the whole process of feeding, weighing, filling bag, date printing, finished product output. |
|
5.Double feeder, high speed, Applicable to customers who require high production capacity and high production efficiency.
|
|
|
|
|
It is suitable for weighing snack foods such as candy, melon seeds, jelly, frozen, pistachio, peanuts, nuts, almonds, raisins,etc.and is suitable for puffed food; hardware, plastic compounds and other granular, flaky, strip, round and irregular shape material.
Mechanical character
| MODEL | JW-B12 |
|---|---|
| Operating speed | 20 - 50 pack/min |
| Weighing Range | 10-3000g |
| Packing Pouch | 3 /4side seal, flat bag, stand bag,flat&zipper pouch |
| Application | snack food |
| Power | 4.4kw |

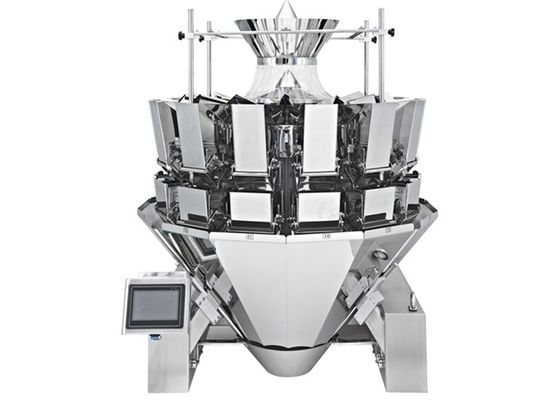

Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads, and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.
Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
