제품 상세 정보:
결제 및 배송 조건:
|
| 부호를 확인하십시오: | A16-4-2 | 범위를 재기: | 10-1000g |
|---|---|---|---|
| 정확도: | x (0.5) | 최대 속도: | 120X2 P/M |
| 호퍼 양: | 1.6L | 제어반: | 10.1” 터치스크린 |
| 선택권: | 타이밍 호퍼/인쇄 기계/불량품 장치 | 소요 전력: | 220V/2300W/50/60Hz/10A |
| 하이 라이트: | 16 머리 멀티헤드 체중기,삼중 층 멀티헤드 체중기,2300W 멀티헤드 가중기 |
||

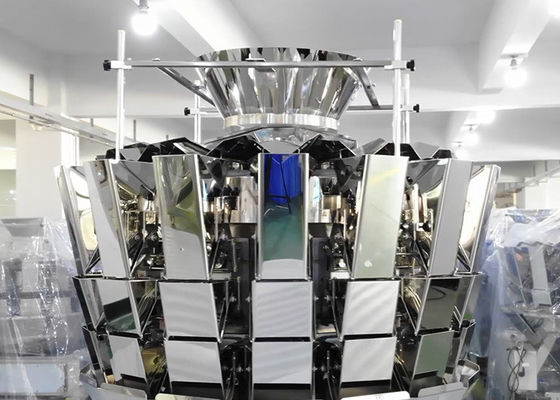

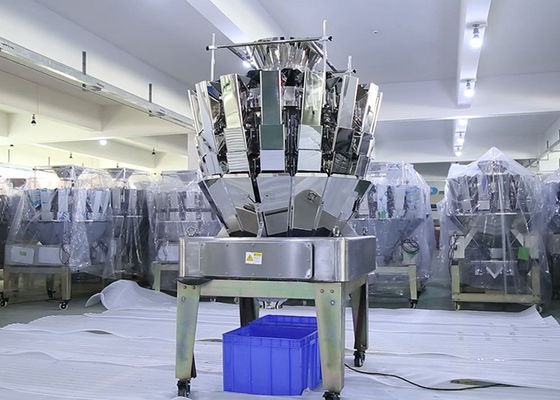

Three Layers 16 Head Multihead Weighing Machine
The Kenwei three layers 16 Head Multihead Weigher is manufacture to a very high specification. The excellent design of this weigher makes it user friendly, reliable, and easy to maintain. Each weigh head has an independent electronic board responsible for weighing, driving, and processing, which allows for much easier maintenance of the weigher.
Features
1. Special load cell with high precision and high standard.
2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.
3. Intelligent fault alarm, convenient for maintenance.
4. High speed staggered discharging function, effectively prevent blocking materials.
5. New highly integrated modular design, using CAN bus technology.
6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.
7. Memory weighers for high performance and mixing applications.
8. Systems with the option of a single variety reject for mixing.
9. Application:It is suitable for weighing various granular, flaky, round, and irregular materials, hardware, etc.
Mechanical character
1. The main vibrating pan can be used for two kinds of mixed materials.
2. With an independent main vibrator, respectively control the thickness of different materials.
3. The new memory bucket to make weighing material storage, increase the combined probability, and effectively improve the accuracy.
4. Machine case and middle seat integral welding greatly enhance
the strength of the machine makes the hopper shorter stable time.
5. All production parameters are adjustable on a large touchscreen display.
6. All contact parts are quickly removable and easy to clean.
Technical specification
| Model | JW-A16 |
| Identify Code | A16-4-2 |
| Weighing Range | 10-1000g |
| Accuracy | X(0.5) |
| Max Speed | 120x2P/M |
| Hopper Volume | 1.6L |
| Control Panel | 10.1” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/2300W/50/60Hz/11A |

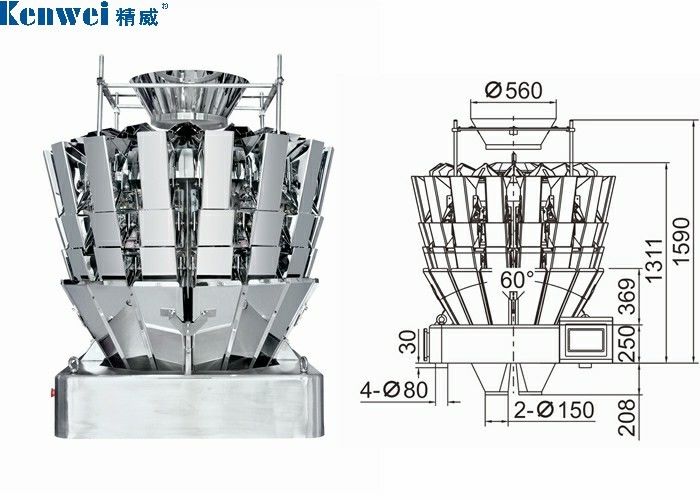

| Packing Dimension(mm) | 1860(L)x1200(W)x1540(H) |
| Gross Weight | 650kg |
Kenwei machinery advantages
We produce multihead weighers, linear weighers,checkweigher, vertical packing machines, metal detectors, conveyors, platforms. We are developing also TTO printers, robots, etc. We provide fully complete packing solutions and make many special projects, like noodles, cheese, mixing, etc. We have customers from more than 90 countries, most of our customers are machine producers or resellers. We believe we are a reliable company for you to work with and we expect long time cooperation with you as well.
